12volt 24V 48V Smart Solar Inverter Regulator Controller 100 Amps 60 40 30 Amp Mppt Solar Charge Controller Wholesale Price

12v 24V 48V Smart Solar Inverter Regulator Controller 100 Amps 60 40 30 Amp Mppt Solar Charge Controller Wholesale Price
Voltage:
Maximum Current:
Availability:
Quantity:
  • Wonder2

  • SIPANI

solar charge controller mppt solar charge controller Solar Regulator charge controller mppt charge controller solar panel controller solar panel regulator
Model: Wonder2
10124, 20124, 30124
1048, 2048, 3048
40124, 50124, 60124
4048, 5048, 6048
80124, 100124
8048, 10048
Rated Current
10A/20A/30A
40A/50A/60A
80A/100A
Rated System Voltage
12V/24V
48V
12V/24V
48V
12V/24V
48V
Max PV Input Voltage(Voc)
(At the lowest ambient temperature)
120V
180V
120V
180V
120V
180V
MPPT Tracking Voltage Range
12V system: 15V-80V; 24V system: 30V-100V; 48V system: 60V-140V
Recommended operating voltage range
12V system: 15V-30V; 24V system: 30V-60V; 48V system: 60V-90V
Charging Mode
MPPT maximum power point tracking
Charging Method
Three stages: constant current(MPPT); constant voltage; floating charge
Protection
Over-voltage/under-voltage/over-temperature/Anti-reverse connection protection
Conversion Efficiency
>98%

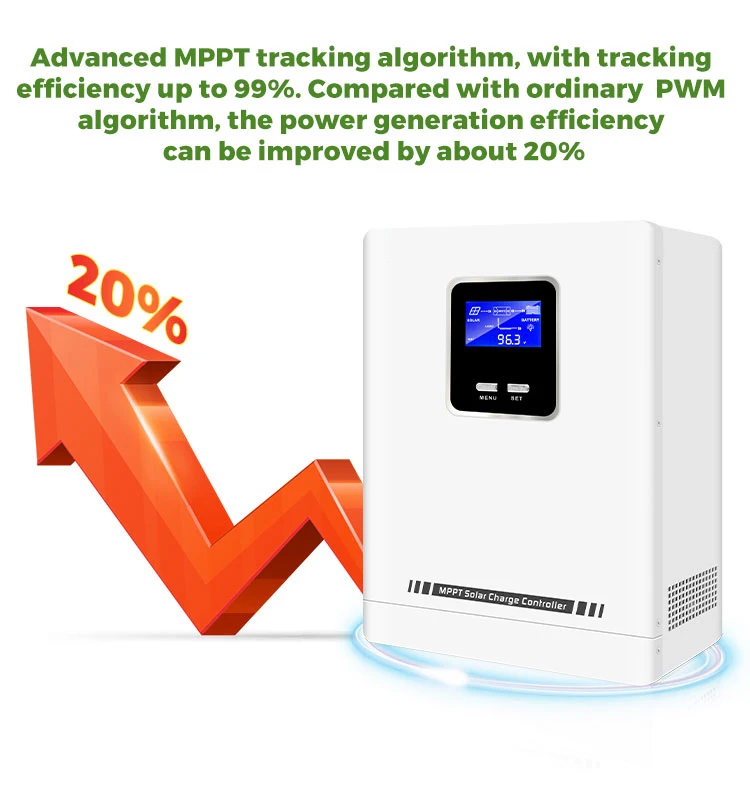

MPPT Tracking Efficiency
>99%
Machine Size(L*W*Hmm)
214*155*72.8
238*180*82
315*210*106.5
Package Size(L*W*Hmm)
243*184*115(1pc)
497*379*247 (8pcs)
267*209*124(1pc)
639*278*265 (6pcs)
344*239*149(1pc)
489*355*315 (4pcs)
N.W(kg)
1.6(1pc)
2.4(1pc)
4.2(1pc)
G.W.(kg)
1.8(1pc)
2.7(1pc)
4.6(1pc)
system parameter
Display
LCD
Thermal Method
Cooling fan in intelligent control
Type Of Mechanical Protection
IP20
Operating Temperature
-15℃~+50℃
Storage Temperature
-20℃~+60℃
Elevation
5000m(Dreating above 2000m)
Humidity
5%~95%(No condensation)
Communication

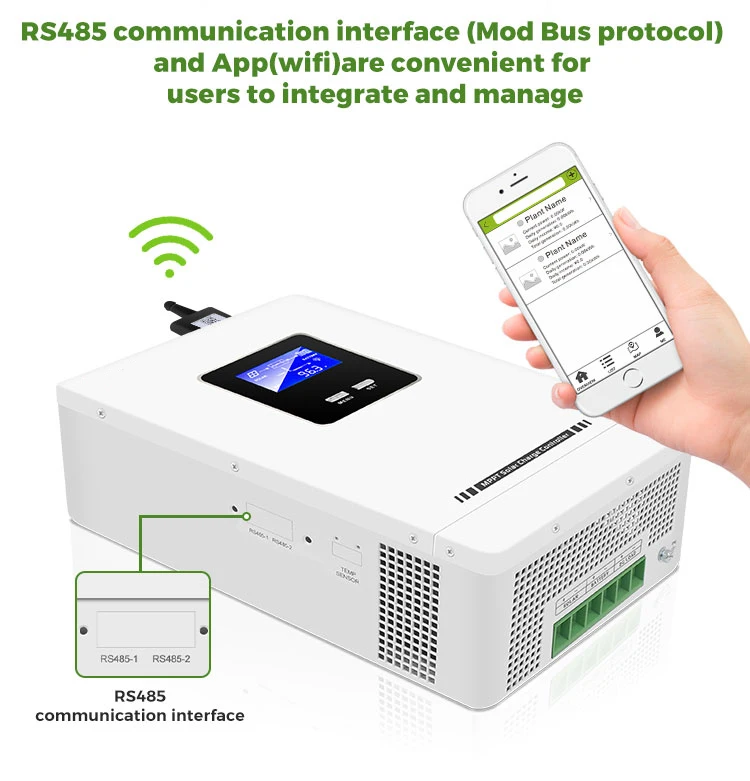

RS485/APP(WIFI monitoring or GPRS monitoring)
Note: All specifications are subject to change without prior notice


Our Advantage
Company Information
solar controller 12v
Certifications

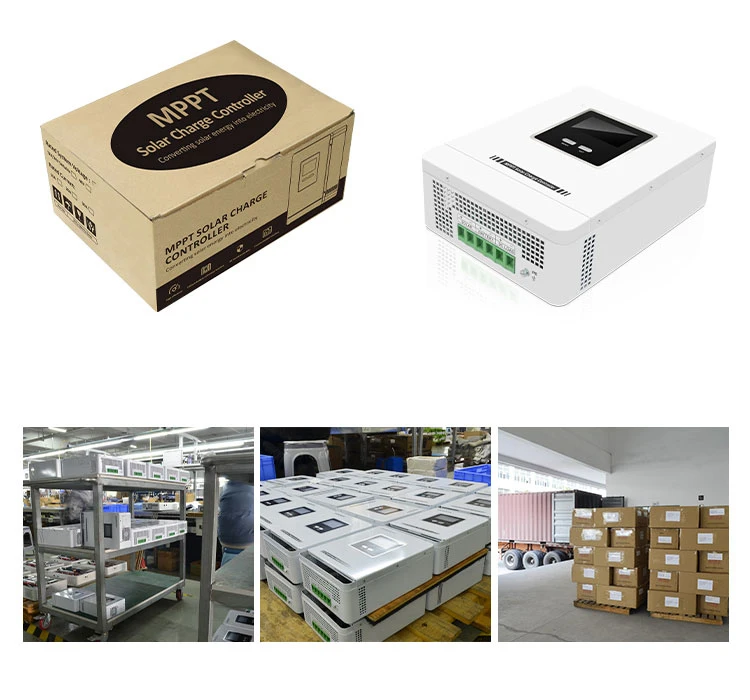

Packaging & Shipping

mppt solar controller

FAQ
mppt regulator

1.What products do you make?
We provide lithium ion battery for street light, customized lithium battery pack for the most electrics appliances, solar storage battery, electric bicycle battery, and portable power station.

2.Do you provide OEM service?
YES. The required quantity is 200 pcs and above.
3.How long does it take for sampling?
It takes 2-3 days for small battery pack(with capacity below 50AH), and 4~7days for big battery pack(with capacity above 50AH).
4.How long is your lead time?
The lead time is 5~7 days for orders with quantity below 50 pcs, 8~15 days for 50-300 pcs, and 10~20 days for 500 pcs and above.
5.How do you ship the goods?
We generally ship the sample via DHL, UPS, EMS, Fedex, TNT, and normal orders by sea or by air, depends on the quantity of the order. If you need us to arrange shipping for you, we will approach the best method to lower your cost.
6.How do you guarantee the quality?
Our production is proceeding with the guideline of ISO9001 quality management system and we have a strict QC procedure for picking out unqualified products, which is battery capacity classifying, aging, sampling inspection, general testing, discharge testing and appearance checking, with all the procedure gone over, we can control the faulty rate below 0.003%.
7.How long is your warranty?
3 years for solar street light battery, battery pack and solar storage battery, 1 year for portable power station. Besides, all of our products have been insured by CPIC, so please rest assured of the safety performance.
8.For solar street light battery, what should I know about rainy or cloudy days?
The battery for solar street light is hardly being charged during rainy or cloudy days, so it should be customized to be capable for working in the worst weather condition locally, so please let us know how long are the continuous rainy or cloudy days that your could estimate.
