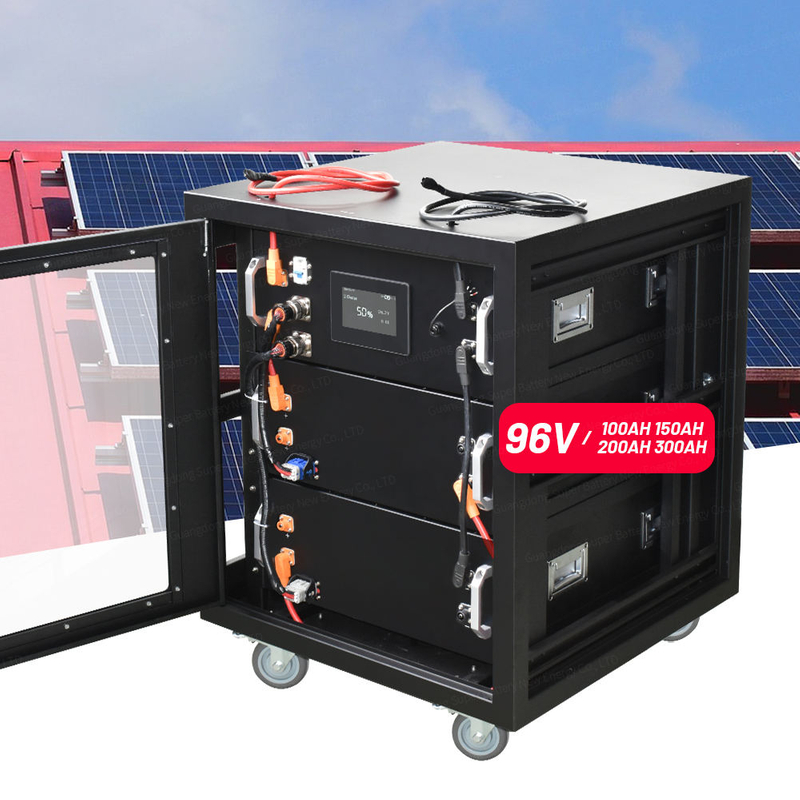

High Voltage Lifepo4 Battery 96v 200ah Lithium Battery Pack For 96v 10kw 15kw 20kw 30kw 40kw 50kw Solar Home System Electric Car

Share to:

High Voltage Lifepo4 Battery 96v 200ah Lithium Battery Pack For 96v 10kw 15kw 20kw 30kw 40kw 50kw Solar Home System Electric Car

Voltage:	96V 192V 512V
Capacity:	50Ah 100Ah 150Ah 200Ah 250Ah 300Ah 400Ah 500Ah 600Ah
Availability:

Quantity:



Inquire Add to Basket

Brand:
SIPANI

Product Description

All Product Models: ♦ Customized service : logo/size/color/etc. ♦ Custom Function: WIFI , Blue tooth , Communication Protocol ,High volt/current Battery.


Lifepo4 battery
Model	Nominal Voltage	Nominal Capacity	Energy	Size
Model	Nominal Voltage	Nominal Capacity	Energy	(Customized)
CD-25.6V 100AH	25.6V	100AH	2560WH	500300160 mm
CD-25.6V 150AH	25.6V	150AH	3840WH	510420210 mm
CD-25.6V 200AH	25.6V	200AH	5120WH	505475155 mm
CD-48V 50AH	48V	50AH	2400WH	400400180 mm
CD-48V 100AH	48V	100AH	4800WH	500470170mm
CD-48V 150AH	48V	150AH	7200WH	530500180mm
CD-48V 200AH	48V	200AH	9600WH	600500210mm
CD-48V 250AH	48V	250AH	12000WH	570655223mm
CD-48V 300AH	48V	300AH	14400WH	780520210mm
CD-48V 400AH	48V	400AH	19200WH	470470953mm
CD-48V 600AH	48V	600AH	28800WH	670680890mm
CD-51.2V 50AH	51.2V	50AH	2560WH	400400180 mm
CD-51.2V 100AH	51.2V	100AH	5120WH	500470170mm
CD-51.2V 150AH	51.2V	150AH	7680WH	530500180mm
CD-51.2V 200AH	51.2V	200AH	10240WH	600500210mm
CD-51.2V 250AH	51.2V	250AH	12800WH	570655223mm
CD-51.2V 300AH	51.2V	300AH	15360WH	780520210mm
CD-51.2V 400AH	51.2V	400AH	20480WH	470470953mm
CD-51.2V 600AH	51.2V	600AH	30720WH	670680890mm
CD-96V 200AH	96V	200AH	19200WH	670680890mm

High Voltage Battery 96V 50AH 100AH 150AH 200AH 250AH 300AH ESS System Solar Storage Cabinet Type LiFePo4 Battery

High Voltage Battery Storage best 51.2v cabinet battery

Capacity	24V100AH	24V200AH	48V50AH	48V100AH	48V200AH	96V200AH
Function	Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function
Nominal Volt	25.6V		48V/51.2V			96V/102.4V
Nominal Capacity	2560WH	5120WH	2400WH/2560WH	4800WH/5120WH	9600WH/10240WH	19200WH/20480WH
Recommend Cutoff volt	21.6V		40.5V/43.2V			81V/86.4V
Recommend Charging volt	28.8V		54V/57.6V			108V/115.2V
Max. Constant Charging Current	50A/100A/150A/200A etc. Customized to your needs
Max. Discharging Current	50A/100A/150A/200A etc. Customized to your needs
Working Temperature	-20℃~60℃ (Recommend10℃~40℃)
Storage Temperature	-10℃~50℃ (Recommend10℃~35℃)
Cycle Life	6000 Cycles ( @50%DOD )
Communication	RS485/CAN etc. All can Customized to your needs
Net Weight
Dimension
