Home / Products / Power wall Battery / Household 48v 200ah Power Wall Lifepo4 Battery Lithium Iron Phosphate Battery 10kwh Wall Mounted Battery

Share to:

Household 48v 200ah Power Wall Lifepo4 Battery Lithium Iron Phosphate Battery 10kwh Wall Mounted Battery

Voltage:	48V 51.2V Others
Capacity:	100Ah 150Ah 200Ah 250Ah 300Ah
Availability:

Quantity:



Inquire Add to Basket

Brand:
SIPANI

Product Description

All Product Models: ♦ Customized service : logo/size/color/etc. ♦ Custom Function: WIFI , Blue tooth , Communication Protocol etc.

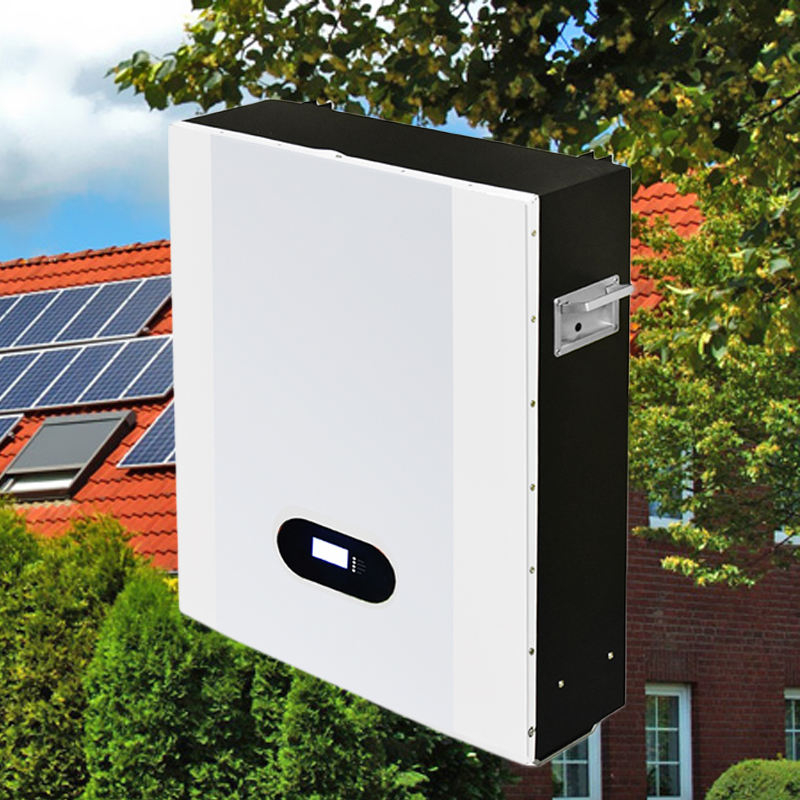

Wall Mounted Lifepo4 battery
Model	Nominal Voltage	Nominal Capacity	Energy	Size
Model	Nominal Voltage	Nominal Capacity	Energy	(Customized)
CD-25.6V 200AH	25.6V	200AH	5120WH	475505156mm
CD-25.6V 250AH	25.6V	250AH	6400WH	475655156mm
CD-48V 100AH	48V	100AH	4800WH	605405200mm
CD-48V 150AH	48V	150AH	7200WH	610440175mm
CD-48V 200AH	48V	200AH	9600WH	620520256mm
CD-48V 250AH	48V	250AH	12000WH	620670256mm
CD-48V 300AH	48V	300AH	14400WH	780520210mm
CD-51.2V 100AH	51.2V	100AH	5120WH	605405200mm
CD-51.2V 150AH	51.2V	150AH	7680WH	610440175mm
CD-51.2V 200AH	51.2V	200AH	10240WH	620520256mm
CD-51.2V 250AH	51.2V	250AH	12800WH	620670256mm
CD-51.2V 300AH	51.2V	300AH	15360WH	780520210mm

Wall-mounted Battery power wall retail power wall reviews

Capacity	12V200Ah	24V100Ah	24V200Ah	48V50Ah	48V100Ah	48V150Ah	48V200Ah
Function	Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function
Nominal Volt	12.8V	25.6V		48V/51.2V
Nominal Capacity	2.56kwh	2.56kwh	5.12kwh	2.4kwh/2.56kwh	4.8kwh/5.12kwh	7.2kwh/7.68kwh	9.6kwh/10.24kwh
Recommend Cutoff volt	10.8V	21.6V		40.5V/43.2V
Recommend Charging volt	14.4V	28.8V		54V/57.6V
Max. Constant Charging Current	50A/100A/150A/200A etc. Customized to your needs
Max. Discharging Current	50A/100A/150A/200A etc. Customized to your needs
Working Temperature	-10℃~55℃ (Recommend10℃~40℃)
Storage Temperature	-20℃~45℃ (Recommend10℃~35℃)
Allowable Humidity range	0~85% RH
Cycle Life	6000 Cycles(@50%DOD)
Communication	RS485/CAN etc. All can Customized to your needs
Net Weight
Dimension
