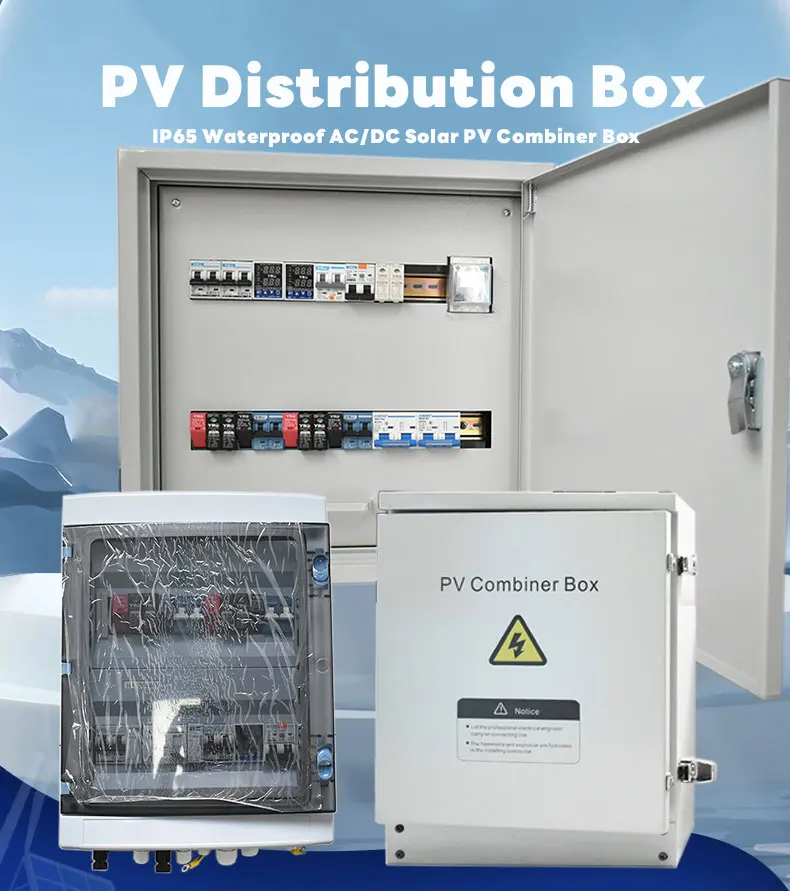

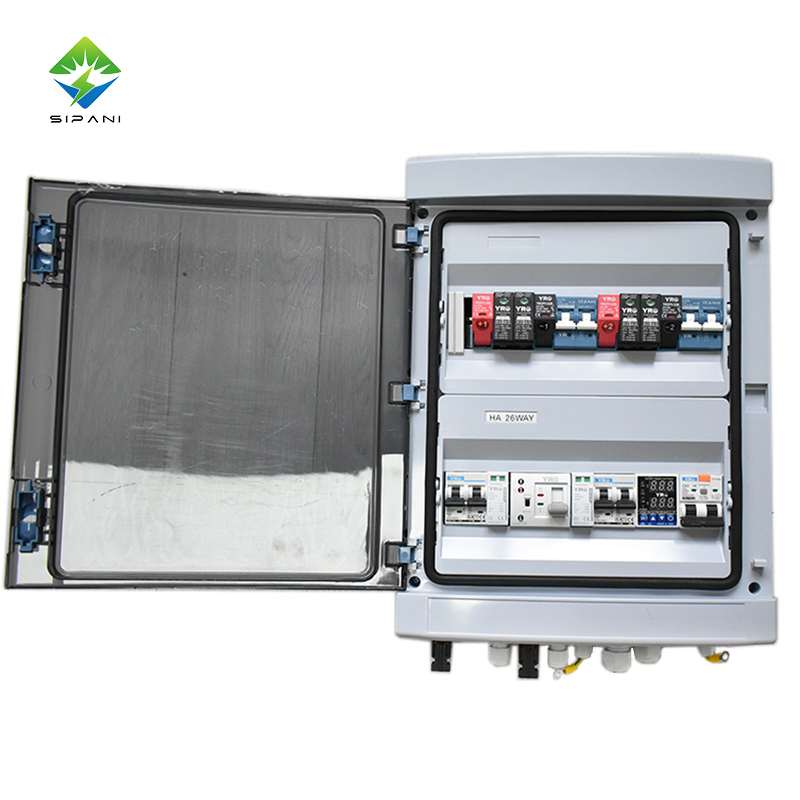

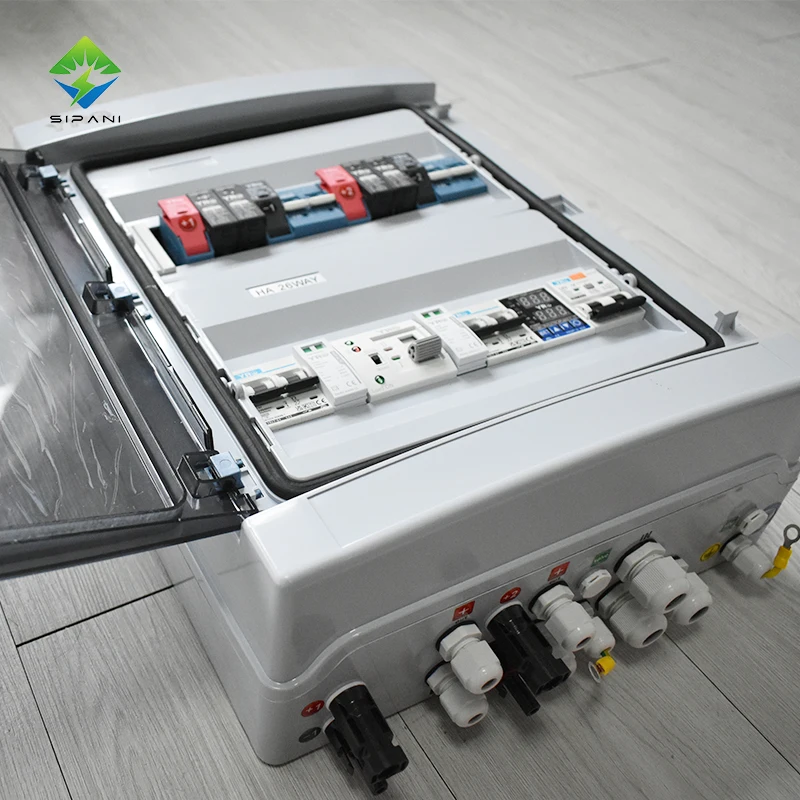

AC/DC Distribution Box
SIPANI
FEATURES
1. The AC Distribution box is suitable for grid-connected power generation systems.
2. It is configured with a dedicated high-voltage lightning arrester, AC fuse, and circuit breaker to provide short-circuit fault protection and lightning protection.
3. It has a protection function of over voltage and over current to avoid damage when the fault occurs.
4. It is also used to reduce the connection and optimize the electric system structure, improve the reliability and maintainability of the system, and make the electric system as its best.
5. IP65 design, waterproof, anti-dust, and anti-UV protection.
6. Strict test for high and low temperature.
7. The simple installation, the simplified system wiring, the convenient wiring.
Product Details
Rated Voltage | 400V |
Operation | 63A |
Temperature Range | -25°C~+60°C |
Protection Level | IP65 |
Enclosure Material | Polycarbonate/ABS |
AC Circuit Breaker | 2P 63A 400V |
RCBO | 1P+N 63A |
AC SPD | 2P 20-40KA 275V |
ATS | 2P 100A |
Over&Under Voltage Protector | 2P 63A |
INSTRUCTION:
1. Close connection Neutral wice line bank and earthing wire line bank both adopt close type with a steady overall structure, which makes inside wiring more esthetical and safer.
2. Clear identification The independent and legible circuit break control circuit chart makes the circuit framework clear and definite and facilitates the connection, seeking, and maintenance of all circuits.
3. Easy Wiring Movable guide track support plate can be hung outside concealed installation box to connect wires without space constrint inside the case body, An Elliptical hole is provided in the guide track support plate to allow adjustment of the distribution box face covering to the horizontal position and achieve a more esthetical appearance..
Notice.
1. All connections must be carried out under the state of power failure.
2. Let the professional electrical engineer carry on the connecting line.
3. The flammable and explosive are forbidden in the installing concourse.
All Product Models: ♦ Customized service : logo/size/color/etc. ♦ Custom Function: WIFI , Blue tooth , Communication Protocol ,High volt/current Battery. | ||||
SIPANI LiFePO4 Battery | ||||
Model | Nominal Voltage | Nominal Capacity | Energy | Size |
(Customized) | ||||
CD-25.6V 100AH | 25.6V | 100AH | 2560WH | 500*300*160 mm |
CD-25.6V 150AH | 25.6V | 150AH | 3840WH | 510*420*210 mm |
CD-25.6V 200AH | 25.6V | 200AH | 5120WH | 505*475*155 mm |
CD-48V 50AH | 48V | 50AH | 2400WH | 400*400*180 mm |
CD-48V 100AH | 48V | 100AH | 4800WH | 500*470*170mm |
CD-48V 150AH | 48V | 150AH | 7200WH | 530*500*180mm |
CD-48V 200AH | 48V | 200AH | 9600WH | 600*500*210mm |
CD-48V 250AH | 48V | 250AH | 12000WH | 570*655*223mm |
CD-48V 300AH | 48V | 300AH | 14400WH | 780*520*210mm |
CD-48V 400AH | 48V | 400AH | 19200WH | 470*470*953mm |
CD-48V 600AH | 48V | 600AH | 28800WH | 670*680*890mm |
CD-51.2V 50AH | 51.2V | 50AH | 2560WH | 400*400*180 mm |
CD-51.2V 100AH | 51.2V | 100AH | 5120WH | 500*470*170mm |
CD-51.2V 150AH | 51.2V | 150AH | 7680WH | 530*500*180mm |
CD-51.2V 200AH | 51.2V | 200AH | 10240WH | 600*500*210mm |
CD-51.2V 250AH | 51.2V | 250AH | 12800WH | 570*655*223mm |
CD-51.2V 300AH | 51.2V | 300AH | 15360WH | 780*520*210mm |
CD-51.2V 400AH | 51.2V | 400AH | 20480WH | 470*470*953mm |
CD-51.2V 600AH | 51.2V | 600AH | 30720WH | 670*680*890mm |
CD-96V 200AH | 96V | 200AH | 19200WH | 670*680*890mm |
