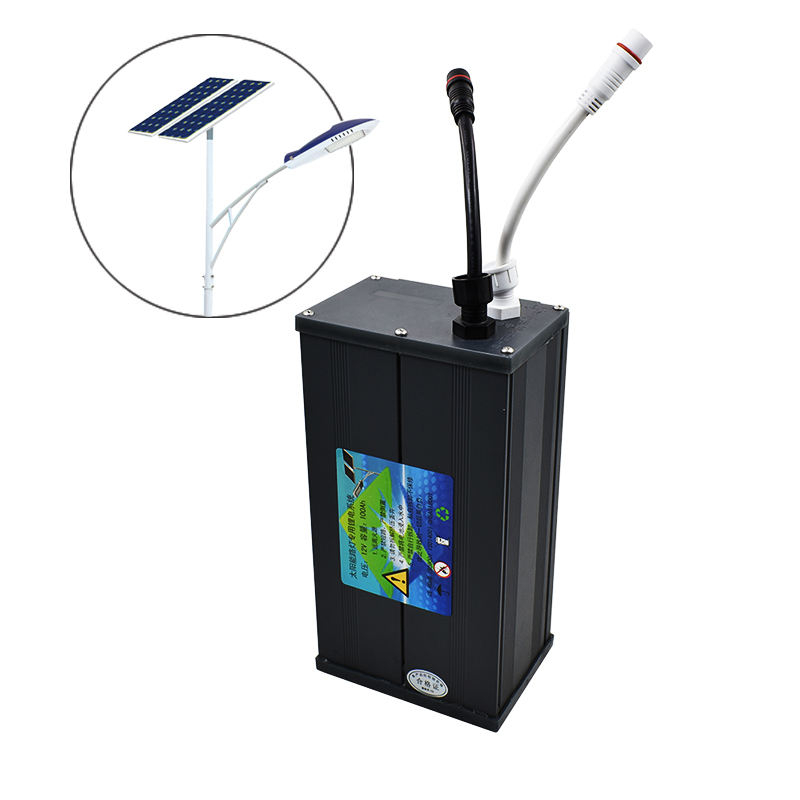

| Parameter of 24V Split-type solar street light battery pack(NCM battery) | ||||||
| Battery pack | Battery specification | 22.2V10AH | 22.2V20AH | 22.2V30AH | 22.2V40AH | 22.2V50AH |
| Cell type | 18650 NCM lithium-ion battery cell | |||||
| Cell capacity | 2500mAh | |||||
| Internal resistance | ≤60mΩ | |||||
| Norminal voltage | 22.2V | |||||
| Norminal capacity | 10AH | 20AH | 30AH | 40AH | 50AH | |
| Cell layout | 6S4P | 6S8P | 6S12P | 6S16P | 6S20P | |
| BMS current | 15A | |||||
| Cycle life | 800~1000 cycles | |||||
| Depth of discharge | ≥97% | |||||
| Charge cut-off votltage | 25.2V | |||||
| Discharge cut-off votltage | 16.8V | |||||
| Solar input | Advised PV input power | 20~40W | 40~60W | 60~80W | 80~100W | 100~130W |
| PV input voltage | 36V | |||||
| Controller | Charge method | PWM | ||||
| Discharge method | Flat/rise voltage, continuous current | |||||
| Charge current | 15A(MAX) | |||||
| Discharge current | 3.3A(MAX) | |||||
| load(LED-1W) | 24V:10~18 series | |||||
| Output voltage | 24V:30~55V | |||||
| Dimming value | 10%~90% | |||||
| Working mode | Programmable, works 8 hrs per night, 3hrs*80%+3hrs*40%+2hrs*20%(load power) | |||||
| Load | Advised load power | 10W | 20W | 30W | 40W | 60W |
| Voltage platform | 24V | |||||
| Advised pole height | 3m | 4m | 6m | 8m | 10m | |
| Continuous working days | 3 days | |||||
| Other info | Working temperature | -20℃~+60℃ | ||||
| Storage temperature | 0℃~+45℃ | |||||
| Warranty | 2 years | |||||
| IP level | IP65 | |||||
| Weight(Approx) | 2kg | 3.2kg | 4.5kg | 5.8kg | 7kg | |
| Shell size(plastic) | 272*204*80mm | 360*232*76mm | 380*231*76mm | |||
| Shell size(aluminum) | 220*160*95mm | 300*160*95mm | 500*160*95mm | 600*160*95mm | 700*160*95mm | |
| Input terminal | 2pin, 2*1.5mm2, 15cm long, male connector | |||||
| Output terminal | 4pin, 4*0.75mm2, 15cm long, male connector | |||||
| Accessory | PV cable | 2pin, 2*1.5mm2, 50cm long, female connector | ||||
| Load cable | 4pin, 4*0.75mm2, 250cm long, male connector | |||||
