48V Mobile LiFepo4 Battery
SIPANI
| Product Parameters | ||
SIPANI Battery Guangdong Super Battery New Energy Co., LTD |
| |
| Model | 51.2V200AH | |
| Function | Bluetooth, Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function | |
| Nominal Volt | 51.2V | |
| Nominal Capacity | 200AH | |
| Recommend Cutoff volt | 43.2V | |
| Recommend Charging volt | 57.6V | |
| Max. Constant Charging Current | 100A | |
| Max. Discharging Current | 100A | |
| Working Temperature | -10℃~55℃ | |
| Storage Temperature | -10℃~55℃ | |
| Cycle Life | 6000 Cycles | |
| Communication | RS485/CAN | |
| Single Battery Weight | 45KG | |
| Total Battery Weight | 96KG | |
| Single Battery Dimension | 540*590*200mm | |
| Total Battery Dimension | 540*590*580mm | |
| Package Dimension | 640*690*780mm | |
| All Product Models: ♦ Customized service : logo/size/color/etc. ♦ Custom Function: WIFI , Blue tooth , Communication Protocol ,High volt/current Battery. | ||||
| SIPANI LiFePO4 Battery | ||||
| Model | Nominal Voltage | Nominal Capacity | Energy | Size |
| (Customized) | ||||
| CD-25.6V 100AH | 25.6V | 100AH | 2560WH | 500*300*160 mm |
| CD-25.6V 150AH | 25.6V | 150AH | 3840WH | 510*420*210 mm |
| CD-25.6V 200AH | 25.6V | 200AH | 5120WH | 505*475*155 mm |
| CD-48V 50AH | 48V | 50AH | 2400WH | 400*400*180 mm |
| CD-48V 100AH | 48V | 100AH | 4800WH | 500*470*170mm |
| CD-48V 150AH | 48V | 150AH | 7200WH | 530*500*180mm |
| CD-48V 200AH | 48V | 200AH | 9600WH | 600*500*210mm |
| CD-48V 250AH | 48V | 250AH | 12000WH | 570*655*223mm |
| CD-48V 300AH | 48V | 300AH | 14400WH | 780*520*210mm |
| CD-48V 400AH | 48V | 400AH | 19200WH | 470*470*953mm |
| CD-48V 600AH | 48V | 600AH | 28800WH | 670*680*890mm |
| CD-51.2V 50AH | 51.2V | 50AH | 2560WH | 400*400*180 mm |
| CD-51.2V 100AH | 51.2V | 100AH | 5120WH | 500*470*170mm |
| CD-51.2V 150AH | 51.2V | 150AH | 7680WH | 530*500*180mm |
| CD-51.2V 200AH | 51.2V | 200AH | 10240WH | 600*500*210mm |
| CD-51.2V 250AH | 51.2V | 250AH | 12800WH | 570*655*223mm |
| CD-51.2V 300AH | 51.2V | 300AH | 15360WH | 780*520*210mm |
| CD-51.2V 400AH | 51.2V | 400AH | 20480WH | 470*470*953mm |
| CD-51.2V 600AH | 51.2V | 600AH | 30720WH | 670*680*890mm |
| CD-96V 200AH | 96V | 200AH | 19200WH | 670*680*890mm |

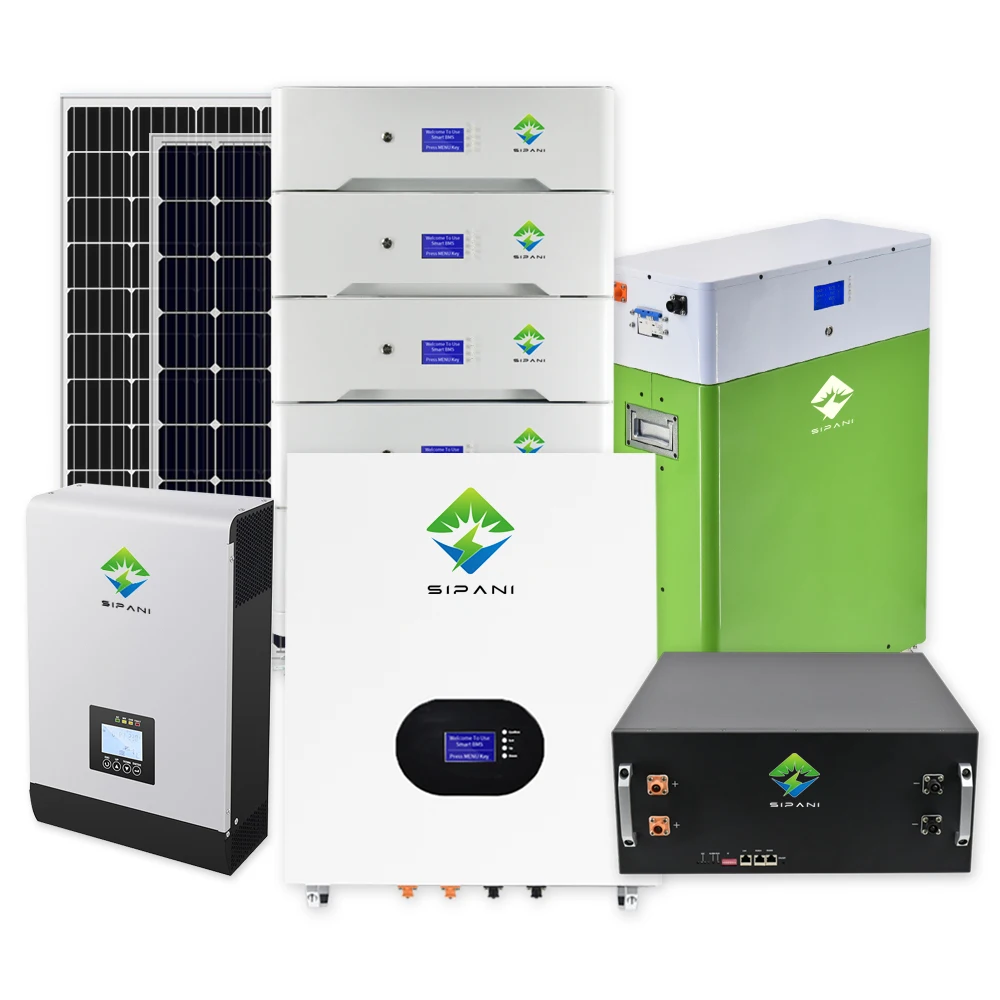

Three Phase ESS Hybrid Inverter and LiFePo4 Battery
Battery: 5KHW 10KWH 15KWH 20KWH 30KWH
Inverter: 3KW 5KW 8KWH 10KW 12KW 16KW
