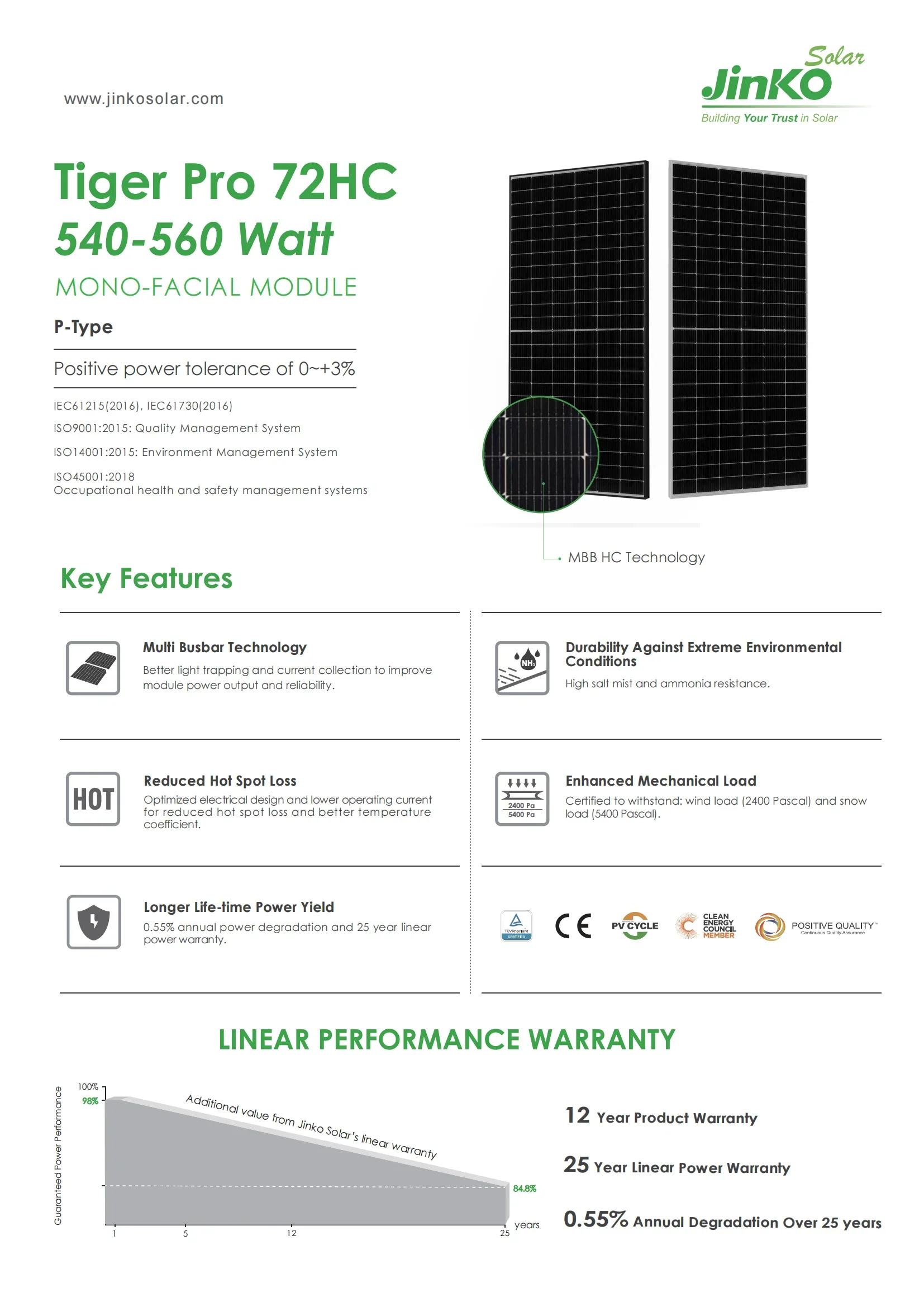

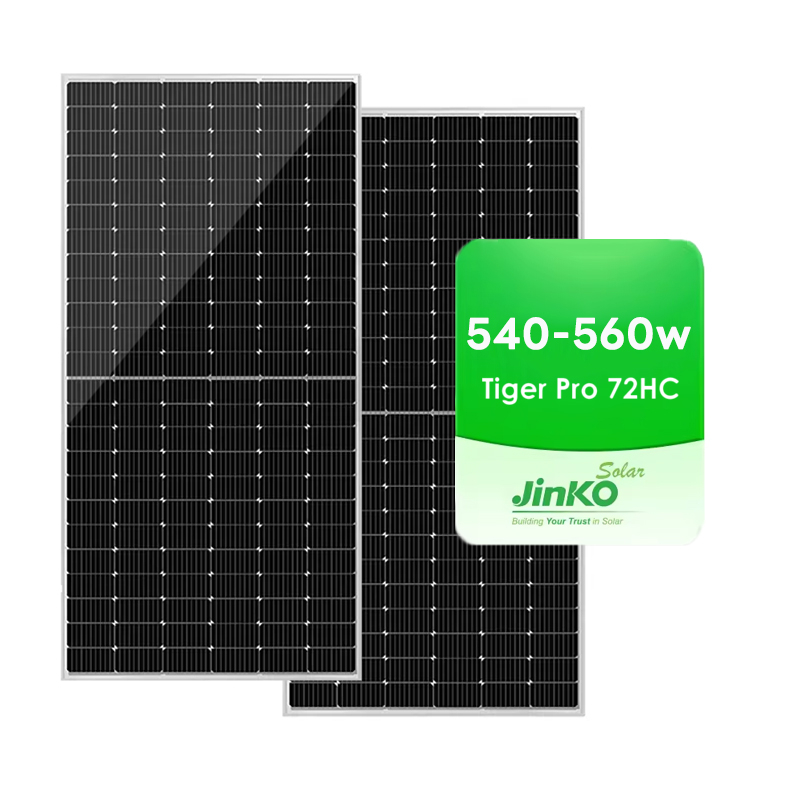

Tiger Pro 72HC 540-560 Watt
Jinko

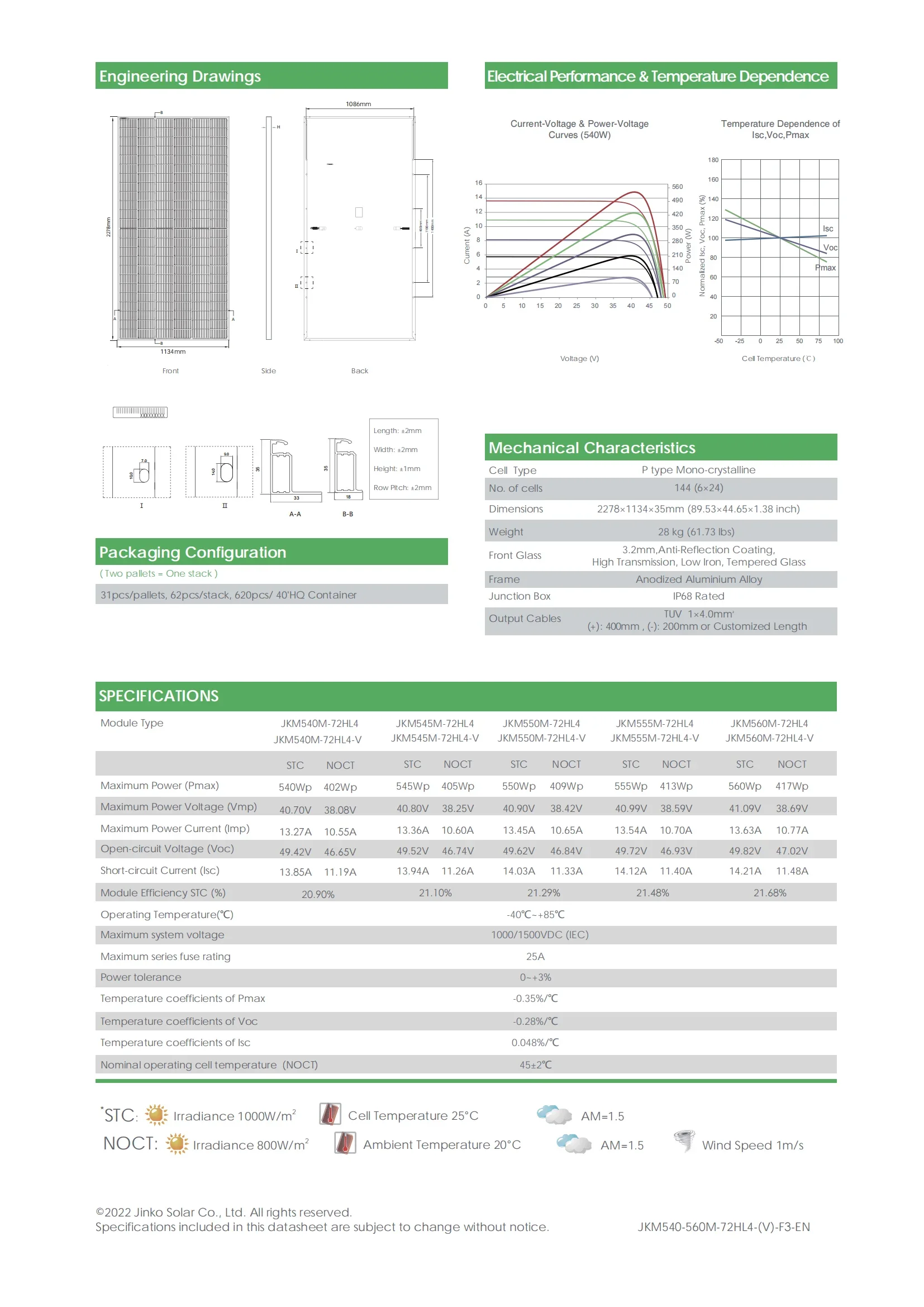

Dimension Of Module | 2278×1134×35mm |
Weight | 28 kg |
Glass | High transmission glass 3.2mm |
Maximum system voltage | 1000/1500VDC (IEC) |
Junction Box | IP68 |
Output Cables | TUV 1x4.0mm² (+): 300mm , (-): 200mm or Customized Length |
Half Cut Technology
Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.
Multi Busbar Technology
MBB technology improves efficiency of modules, offers a better aesthetic appearance.
PERC Technology
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
Dimension Of Module | 2278×1134×35mm |
Weight | 28 kg |
Glass | High transmission glass 3.2mm |
Maximum system voltage | 1000/1500VDC (IEC) |
Junction Box | IP68 |
Output Cables | TUV 1x4.0mm² (+): 300mm , (-): 200mm or Customized Length |
Half Cut Technology
Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.
Multi Busbar Technology
MBB technology improves efficiency of modules, offers a better aesthetic appearance.
PERC Technology
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
