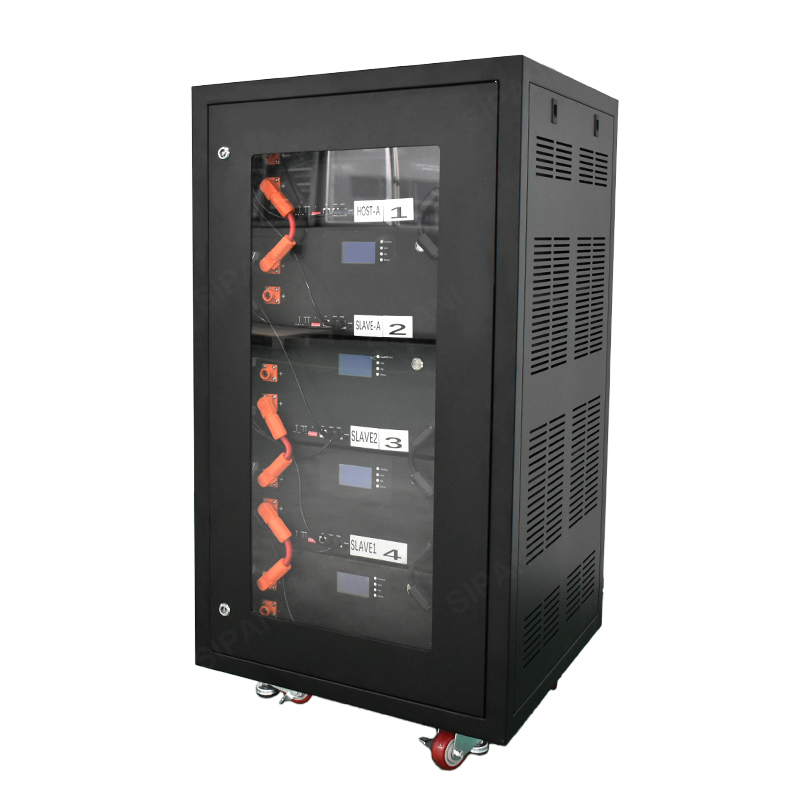

48V 1000Ah High Capacity Lithium Ion Battery Solar Storage Cabinet Rack Mount Battery Solar System Battery for Commercial Home Energy Storage System 50kwh

Share to:

48V 1000Ah High Capacity Lithium Ion Battery Solar Storage Cabinet Rack Mount Battery Solar System Battery for Commercial Home Energy Storage System 50kwh

Voltage:	48V 51.2V
Capacity:	200Ah 400Ah 500Ah 600Ah 800Ah 1000Ah
Availability:

Quantity:



Inquire Add to Basket

Model:
Cabinet Type Battery-C
Brand:
SIPANI

Product Description

All Product Models: ♦ Customized service : logo/size/color/etc. ♦ Custom Function: WIFI , Blue tooth , Communication Protocol ,High volt/current Battery.


Lifepo4 battery
Model	Nominal Voltage	Nominal Capacity	Energy	Size
Model	Nominal Voltage	Nominal Capacity	Energy	(Customized)
CD-25.6V 100AH	25.6V	100AH	2560WH	500300160 mm
CD-25.6V 150AH	25.6V	150AH	3840WH	510420210 mm
CD-25.6V 200AH	25.6V	200AH	5120WH	505475155 mm
CD-48V 50AH	48V	50AH	2400WH	400400180 mm
CD-48V 100AH	48V	100AH	4800WH	500470170mm
CD-48V 150AH	48V	150AH	7200WH	530500180mm
CD-48V 200AH	48V	200AH	9600WH	600500210mm
CD-48V 250AH	48V	250AH	12000WH	570655223mm
CD-48V 300AH	48V	300AH	14400WH	780520210mm
CD-48V 400AH	48V	400AH	19200WH	470470953mm
CD-48V 600AH	48V	600AH	28800WH	670680890mm
CD-51.2V 50AH	51.2V	50AH	2560WH	400400180 mm
CD-51.2V 100AH	51.2V	100AH	5120WH	500470170mm
CD-51.2V 150AH	51.2V	150AH	7680WH	530500180mm
CD-51.2V 200AH	51.2V	200AH	10240WH	600500210mm
CD-51.2V 250AH	51.2V	250AH	12800WH	570655223mm
CD-51.2V 300AH	51.2V	300AH	15360WH	780520210mm
CD-51.2V 400AH	51.2V	400AH	20480WH	470470953mm
CD-51.2V 600AH	51.2V	600AH	30720WH	670680890mm
CD-96V 200AH	96V	200AH	19200WH	670680890mm

Three Phase ESS Hybrid Inverter and LiFePo4 Battery

Battery: 5KHW 10KWH 15KWH 20KWH 30KWH

Inverter: 3KW 5KW 8KWH 10KW 12KW 16KW

lithium battery 48v 1000ah 50kwh battery cabinet battery

Capacity	24V100AH	24V200AH	48V50AH	48V100AH	48V200AH	96V200AH
Function	Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function
Nominal Volt	25.6V		48V/51.2V			96V/102.4V
Nominal Capacity	2560WH	5120WH	2400WH/2560WH	4800WH/5120WH	9600WH/10240WH	19200WH/20480WH
Recommend Cutoff volt	21.6V		40.5V/43.2V			81V/86.4V
Recommend Charging volt	28.8V		54V/57.6V			108V/115.2V
Max. Constant Charging Current	50A/100A/150A/200A etc. Customized to your needs
Max. Discharging Current	50A/100A/150A/200A etc. Customized to your needs
Working Temperature	-20℃~60℃ (Recommend10℃~40℃)
Storage Temperature	-10℃~50℃ (Recommend10℃~35℃)
Cycle Life	6000 Cycles ( @50%DOD )
Communication	RS485/CAN etc. All can Customized to your needs
Net Weight
Dimension
