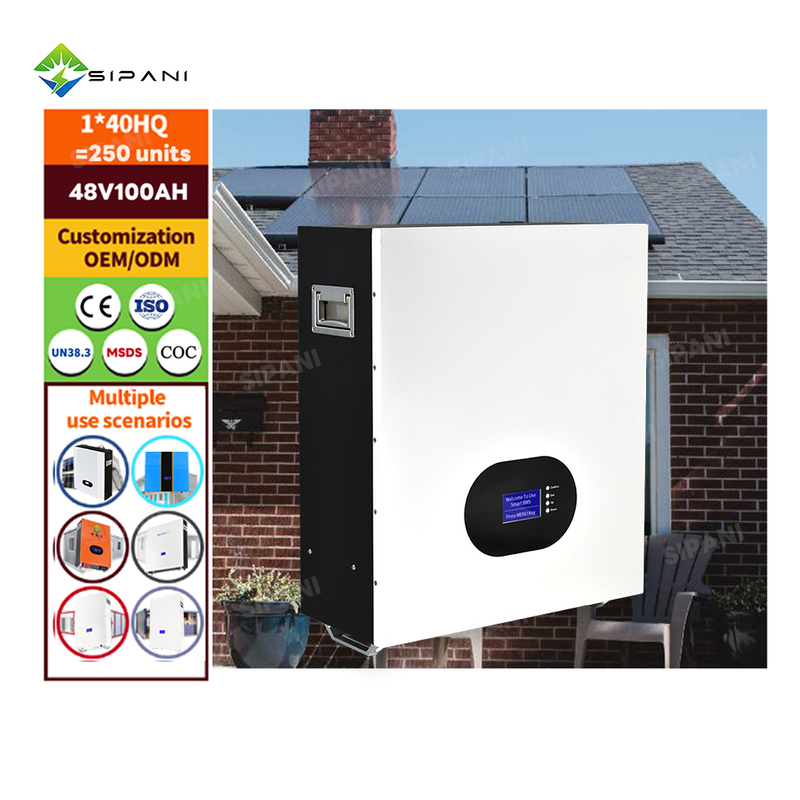

48v 100ah 200ah 300ah Wall Mount Lithium Iron Phosphate Battery Pack 6000 Cycle 51.2v 5kwh 10kwh 15kwh Battery Lifepo4 Solar Powerwall for Home Solar Energy

Share to:

48v 100ah 200ah 300ah Wall Mount Lithium Iron Phosphate Battery Pack 6000 Cycle 51.2v 5kwh 10kwh 15kwh Battery Lifepo4 Solar Powerwall for Home Solar Energy

Voltage:	48V 51.2V Other 24V
Capacity:	100AH 150AH 200AH 250AH 300AH
Availability:

Quantity:



Inquire Add to Basket

Brand:
SIPANI

Product Description

All Product Models: ♦ Customized service : logo/size/color/etc. ♦ Custom Function: WIFI , Blue tooth , Communication Protocol etc.

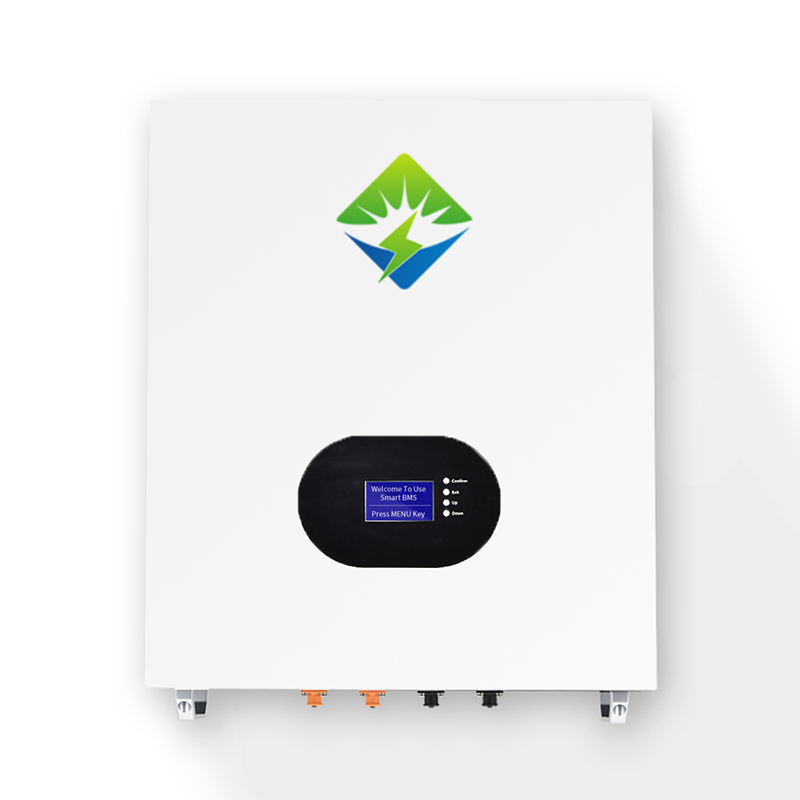

Wall Mounted Lifepo4 battery
Model	Nominal Voltage	Nominal Capacity	Energy	Size
Model	Nominal Voltage	Nominal Capacity	Energy	(Customized)
CD-25.6V 200AH	25.6V	200AH	5120WH	475505156mm
CD-25.6V 250AH	25.6V	250AH	6400WH	475655156mm
CD-48V 100AH	48V	100AH	4800WH	605405200mm
CD-48V 150AH	48V	150AH	7200WH	610440175mm
CD-48V 200AH	48V	200AH	9600WH	620520256mm
CD-48V 250AH	48V	250AH	12000WH	620670256mm
CD-48V 300AH	48V	300AH	14400WH	780520210mm
CD-51.2V 100AH	51.2V	100AH	5120WH	605405200mm
CD-51.2V 150AH	51.2V	150AH	7680WH	610440175mm
CD-51.2V 200AH	51.2V	200AH	10240WH	620520256mm
CD-51.2V 250AH	51.2V	250AH	12800WH	620670256mm
CD-51.2V 300AH	51.2V	300AH	15360WH	780520210mm

10kwh Lifepo4 Batteries 51.2v200ah 6000 Cycle 51.2v 200ah 10kwh Battery Wall Mount Lithium Iron Battery 48v 200ah

Capacity	12V200Ah	24V100Ah	24V200Ah	48V50Ah	48V100Ah	48V150Ah	48V200Ah
Function	Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function
Nominal Volt	12.8V	25.6V		48V/51.2V
Nominal Capacity	2.56kwh	2.56kwh	5.12kwh	2.4kwh/2.56kwh	4.8kwh/5.12kwh	7.2kwh/7.68kwh	9.6kwh/10.24kwh
Recommend Cutoff volt	10.8V	21.6V		40.5V/43.2V
Recommend Charging volt	14.4V	28.8V		54V/57.6V
Max. Constant Charging Current	50A/100A/150A/200A etc. Customized to your needs
Max. Discharging Current	50A/100A/150A/200A etc. Customized to your needs
Working Temperature	-10℃~55℃ (Recommend10℃~40℃)
Storage Temperature	-20℃~45℃ (Recommend10℃~35℃)
Allowable Humidity range	0~85% RH
Cycle Life	6000 Cycles(@50%DOD)
Communication	RS485/CAN etc. All can Customized to your needs
Net Weight
Dimension
