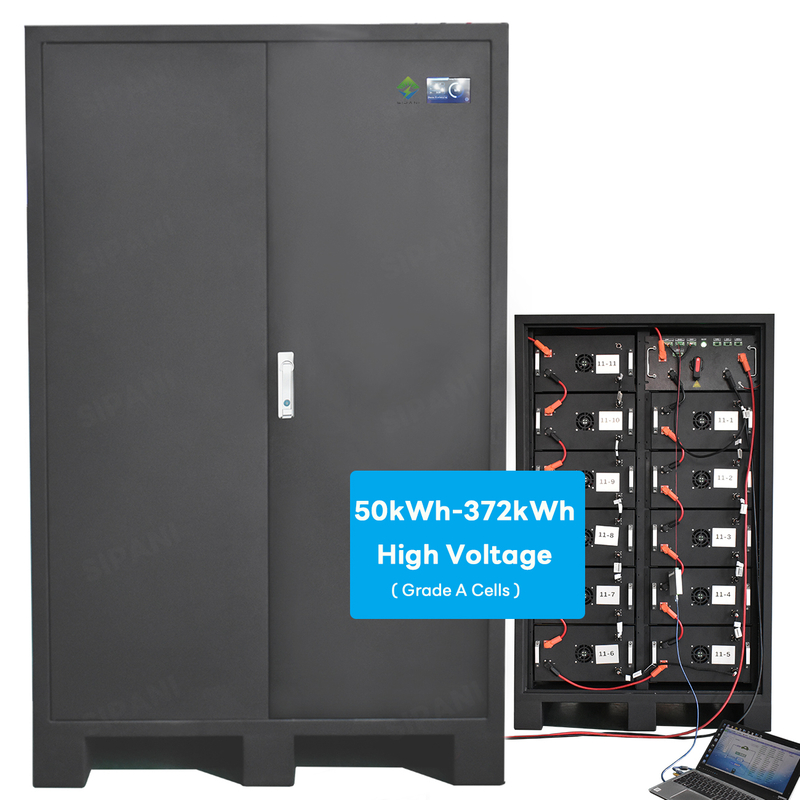

50kWh 100kWh 150kWh 200kWh Battery Storage System 528V HV ESS Rack Mount High Voltage Ups Lifepo4 Battery Pack Solar 105kwh Compatible with Deye Inverter

Share to:

50kWh 100kWh 150kWh 200kWh Battery Storage System 528V HV ESS Rack Mount High Voltage Ups Lifepo4 Battery Pack Solar 105kwh Compatible with Deye Inverter

Factory HV Lifepo4 Battery 96v 144v 192V 240V 256v 288v 360v 384V 409.6v 480V 512V 528v 50ah 100ah 150ah 200ah 250ah 300ah 400ah 600ah High Voltage Battery Solar Storage Inverter Cabinet Lithium Ion Battery Ess System Battery

Voltage:	96V 144V 192V 240V 256V 288V 360V 384V 409.6V 480V 512V 528V Other
Battery Module Capacity:	50AH 100AH 150AH 200AH 250AH 300AH
Capacity:	20kWh-372kWh
Availability:

Quantity:



Inquire Add to Basket

Model:
CD-528V High Voltage Battery
Brand:
SIPANI

Product Description

Manufacturer	Guangdong Super Battery New Energy Co., LTD
Voltage	96V/144V/192V/240V/256V/288V/360V/384V/409.6V/480V/512V/528v
Capacity	50Ah	100Ah	200Ah	300Ah	400Ah
Discharge current	50A	100A	100A	150A	200A
Size	Customized to your requirements
Cycle Life	6000 times
Communication	RS485/CAN etc.
Application	Solar System	Energy Storage System	Home Storage System	Industrial energy storage	Server backup power
Your Primary Custom Battery Pack Manufacturer in China Contact SIPANI to Start Your Custom Battery Project

Praduct
Capacity	528V105.6kWh
Function	Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function
Nominal Volt	528V
Nominal Capacity	200AH
Nominal Capacity	105600AH
Charge cut-off voltage	594V
Discharge cut-off voltage	445.5V
MAX charge current.	89A
MAX discharge current.	89A
IP level:	IP54
Working Temperature	-20℃~60℃
Storage Temperature	-20℃~60℃
Cycle Life	6000cycles
communication	CAN/RS485
Battery Weight	1080KG
Gross Weight	1340KG
Size	11047201773.5mm

100kwh lifepo4 battery rack mount high voltage battery hv battery rack module high voltage batteries compatible with deye high voltage battery cabinet
