| All Product Models: ♦ Customized service : logo/size/color/etc. ♦ Custom Function: WIFI , Blue tooth , Communication Protocol etc. | ||||

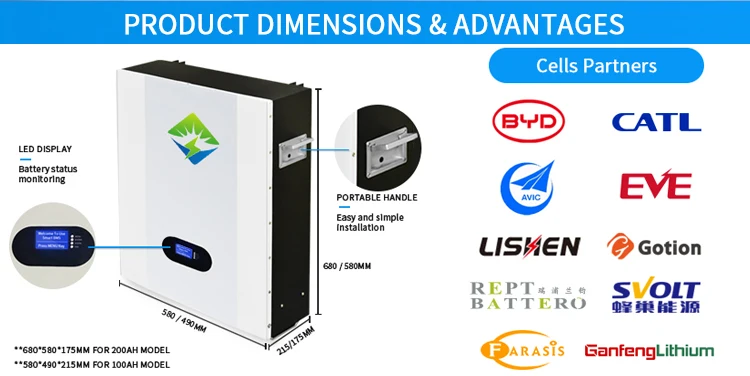

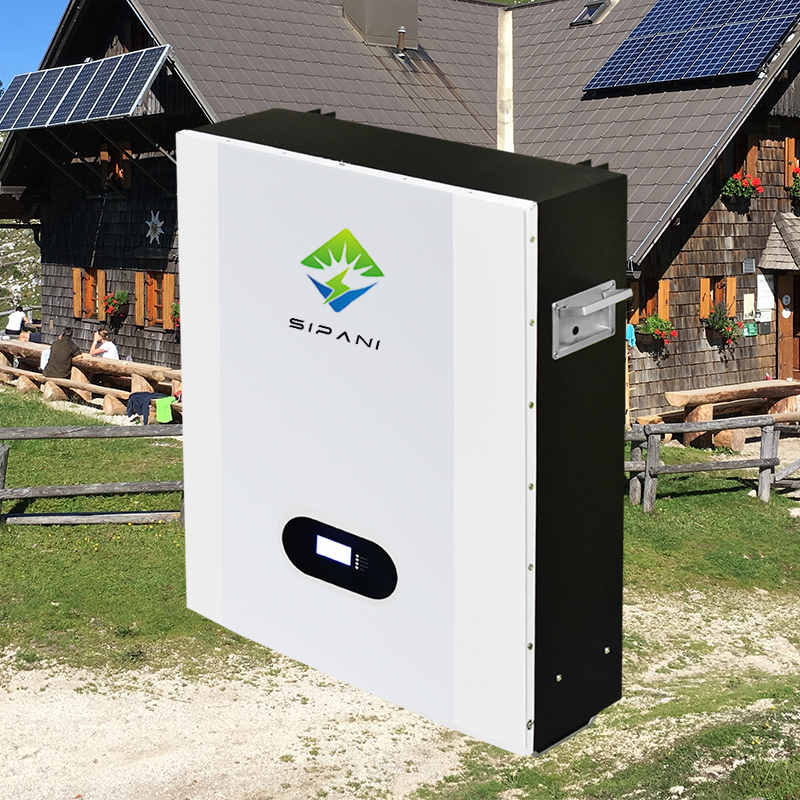

| Wall Mounted Lifepo4 battery | ||||
| Model | Nominal Voltage | Nominal Capacity | Energy | Size |
| (Customized) | ||||
| CD-25.6V 200AH | 25.6V | 200AH | 5120WH | 475*505*156mm |
| CD-25.6V 250AH | 25.6V | 250AH | 6400WH | 475*655*156mm |
| CD-48V 100AH | 48V | 100AH | 4800WH | 605*405*200mm |
| CD-48V 150AH | 48V | 150AH | 7200WH | 610*440*175mm |
| CD-48V 200AH | 48V | 200AH | 9600WH | 620*520*256mm |
| CD-48V 250AH | 48V | 250AH | 12000WH | 620*670*256mm |
| CD-48V 300AH | 48V | 300AH | 14400WH | 780*520*210mm |
| CD-51.2V 100AH | 51.2V | 100AH | 5120WH | 605*405*200mm |
| CD-51.2V 150AH | 51.2V | 150AH | 7680WH | 610*440*175mm |
| CD-51.2V 200AH | 51.2V | 200AH | 10240WH | 620*520*256mm |
| CD-51.2V 250AH | 51.2V | 250AH | 12800WH | 620*670*256mm |
| CD-51.2V 300AH | 51.2V | 300AH | 15360WH | 780*520*210mm |
| Capacity | 12V200Ah | 24V100Ah | 24V200Ah | 48V50Ah | 48V100Ah | 48V150Ah | 48V200Ah |
| Function | Over-discharge, Overcharge, Shortcircuit Protection & Equalization Function | ||||||
| Nominal Volt | 12.8V | 25.6V | 48V/51.2V | ||||
| Nominal Capacity | 2.56kwh | 2.56kwh | 5.12kwh | 2.4kwh/2.56kwh | 4.8kwh/5.12kwh | 7.2kwh/7.68kwh | 9.6kwh/10.24kwh |
| Recommend Cutoff volt | 10.8V | 21.6V | 40.5V/43.2V | ||||
| Recommend Charging volt | 14.4V | 28.8V | 54V/57.6V | ||||
| Max. Constant Charging Current | 50A/100A/150A/200A etc. Customized to your needs | ||||||
| Max. Discharging Current | |||||||
| Working Temperature | -10℃~55℃ (Recommend10℃~40℃) | ||||||
| Storage Temperature | -20℃~45℃ (Recommend10℃~35℃) | ||||||
| Allowable Humidity range | 0~85% RH | ||||||
| Cycle Life | 6000 Cycles(@50%DOD) | ||||||
| Communication | RS485/CAN etc. All can Customized to your needs | ||||||
| Net Weight | |||||||
| Dimension | |||||||
